2010-2013 Camaro SS Vararam Power Wedge Throttle Body Spacer

SKU: VRX-93
Vararam VRX-93

Vararam is a performance parts manufacturer renowned for its advanced air intake systems designed to optimize engine airflow and boost horsepower. Specializing in innovative designs that enhance performance and efficiency, Vararam products are popular among automotive enthusiasts seeking to maximize their vehicle's power and responsiveness.

0.0
Vararam
    • 10% less
    Market price: $135.73, you save $13.73
  • $122.00

0% APR or as low as $12/mo with . See if you qualify

OR

2010-2013 Camaro SS Vararam Power Wedge

Vararam Power Wedge Throttle Body Spacer for the fifth generation Camaro SS

The Vararam Power Wedge is a brilliantly designed throttle body wedge piece that improves MAP pressures by maintaining an increased pressure number over the RPM band. This increase results in increases to HP and Torque numbers--especially in the mid-range of the RPM band where most driving is done. However, even though peak gains are seen around the mid-range of the band, gains can be found across the entire band as result of installation of the Power Wedge. These gains are achieved through the Power Wedge's ingenious design which tilts the throttle body downward to a specific point of attack, which allows for the lower passage to open up to nearly true 100% volume on air flow.

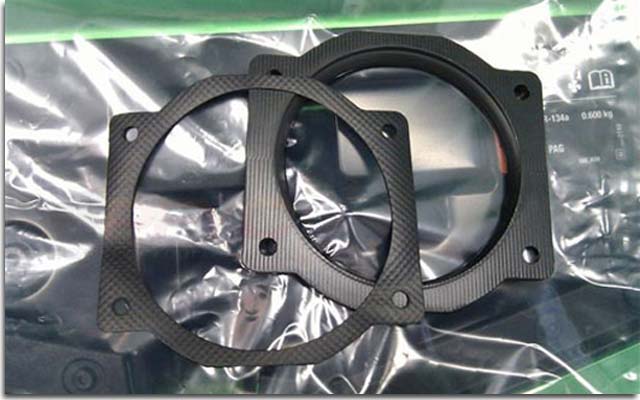

Vararam VR Power Wedge

Manufactured from machined Zytel plastic--a powerful, durable, lightweight plastic component that's incredibly heat resistant and used by many manufacturers for the OEM throttle body pieces--this piece provides balance to the plenum inside the bore for increased performance and amazing durability. The change to the plenum allows for the manifold vacuum to pull evenly across the entire neck in a more uniform manner, and as such reduces unwanted backpressure air flow drops, ultimately increasing total air flow. This is a good thing as, in terms of performance numbers, air flow is the name of the game. The rear of the Power Wedge also integrates a variable radius air horn which functions to boost air velocity just before it enters the body of the intake manifold plenum. Again, the fucntion of this aspect is to increase air flow volume and push power numbers higher.

Camaro Vararam Power Wedge

How does this benefit the engine at such a low/RPM lift value?
Because we are not increasing the volume of the intake runner or cylinder head, the flow increase will substantially increase the RAM TUNING inside the intake manifold runners. The increase is occurring at the most important area, the beginning /lower area of the pressure wave. A pressure wave acts like a wave coming to shore, building boost pressure behind the intake valve. If the base energy of the wave is increased, it strengthens the wave exponentially towards your Torque peak. This will show up in the form of TORQUE increases from low to mid-range RPM’s. The Torque increases will carry up the power curve leading to an increase in overall HP all the way to redline.

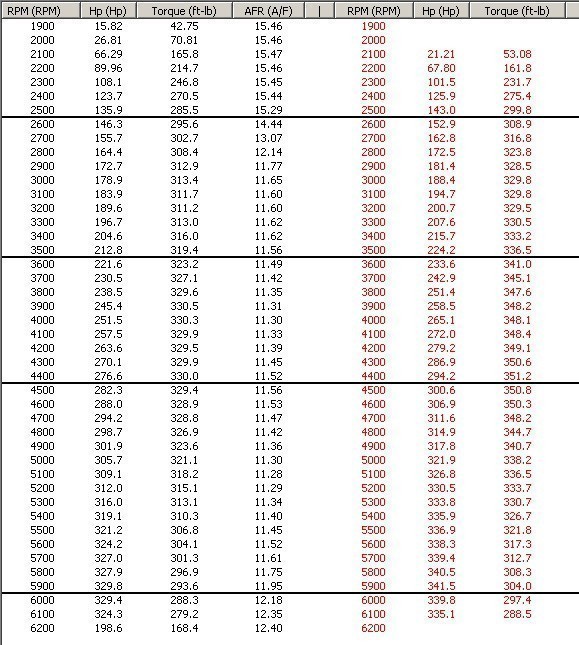

Data Logging has also shown a consistent +.10PSI increase in the manifold pressure at 5200-5800RPM on an LS-3.
A Stock LS-3 in a Corvette or Camaro will normally hit a max of 14.40 PSI@ 5200RPM and pull back to 14.20-14.10@ 5600-5800RPM or so. This is the max power peak RPM range on a stock LS-3. (RPM over run between shifts will always show a false numbers on data logs)

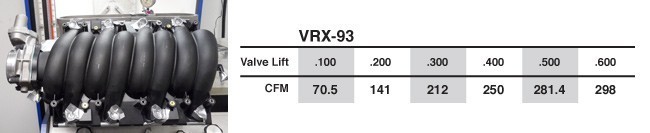

LS3 Vararam VRX-93 Power Wedge

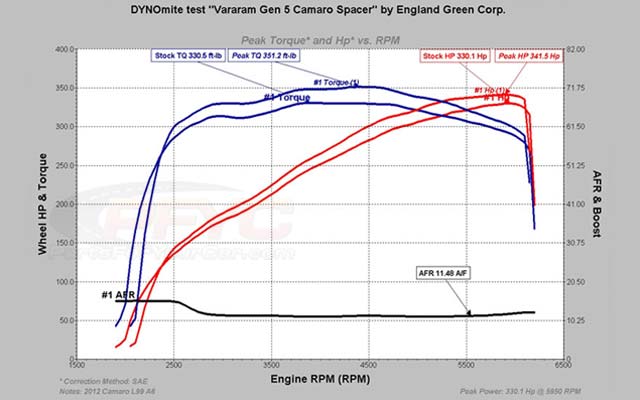

How much Torque can this add and where will I notice the gains? Based on the flow increases we normally see, this would yield approximately +18-20ftlbs at 2500-4000RPM from a stock LS-3. Mid-Range numbers are usually +12-14 ft. lbs. @ 4500-4800RPM on a stock LS-3. Our Dyno testing of Corvettes, Camaro’s etc. verifies these figures. The horsepower generated at higher RPM will depend on the amount of torque gained down low and in the Torque peak.

VRX-93 LS3 L99 Throttle Body Spacer Power Wedge

Performance LS3 Intake

Custom tuned vehicles: This product offers substantial gains; these gains will result in more airflow, which means more MAF scaling. Some vehicles that have been custom tuned may need to be retuned so the MAF does not over scale. Using the LS-3 spacer MAF scaling will rise substantially at lower/Mid-Range RPM levels, + 175-250HZ, peak HZ is usually +90-120HZ.
(VR Equipped Camaros only, A6 & M6 models) If the vehicle is custom tuned or has a Tuner on it, it will need to be re-tuned to realize the gains from the Power Wedge. If the Vehicle is not retuned the MAF will over scale causing the ECU to delay/pull timing advance and it will go rich.

WHY only the VR? The spacer will move the VR closer to the throttle body, increasing MAF scaling and it will run leaner, by 1%. The flow increase is greater with the VR than for any other intake system because it accelerates airflow even sitting still by design. (The MAF numbers will rise well over 275-300HZ@45-4800RPM and 125-200HZ@ 5800RPM) basically its maxing out the MAF sooner. Simply upgrading to a Tune model tail section will allow the MAF to go up to 700hp.

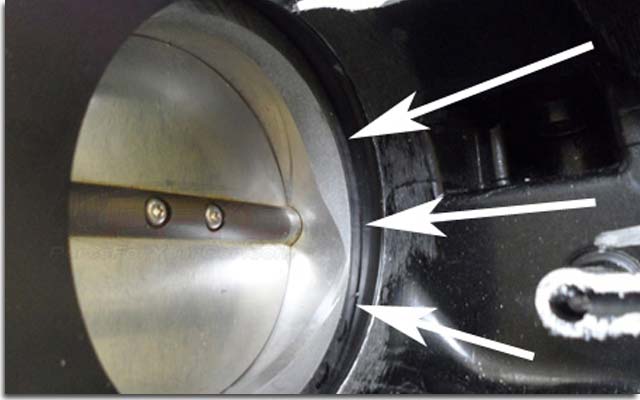

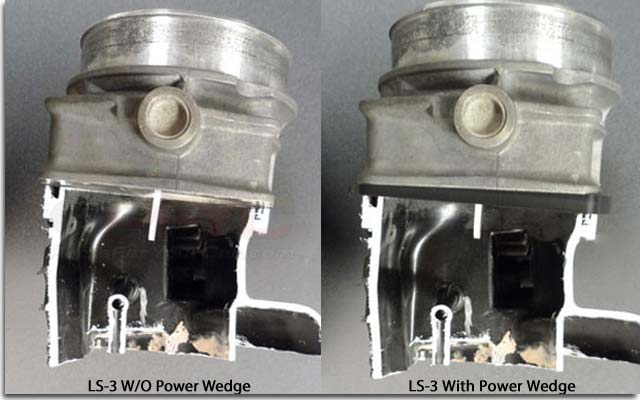

The Power wedge was born from the VRX Intake manifold program. Our research showed that most of the OEM manifolds had the intake manifold neck pointed upward at about 8 degrees. This is done in order to clear the water pumps and to soften throttle tip in response. In this position , at wide open throttle the blade extends into the manifold neck and plenum up to 1 full inch downward angle position. This blocks a portion of the lower section of the flow path.
In short This means that when you are at WIDE open throttle you are only getting about 88-92% of the flow that is possible from whatever throttle body you are running.

The Power wedge can be used on a stock car or a car making insane HP numbers, stroker motors and supercharged applications. They all work with the "VR Power Wedge!"
Simply specify your bore diameter and get ready for an all new driving experience. The Torque Curve will amaze you! It will be from 2,000RPM all the way to red line!

LS3 Power Wedge VR Throttle Body Spacer Vararam
