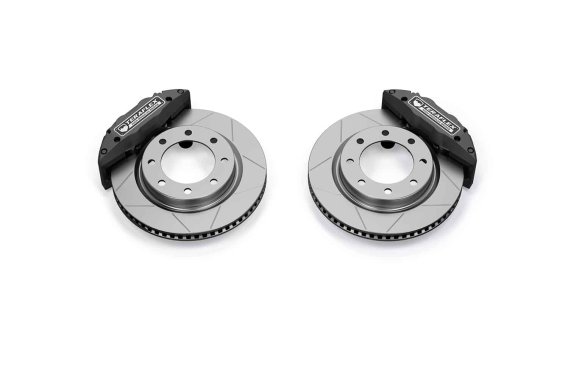

The TeraFlex Delta Front Brake Kit is the ultimate upgrade for JL and JK Wrangler/Unlimited and JT Gladiator models with oversized and heavier wheels/tire combos requiring increased braking performance. A must for 33-42 inch tires or heavy-laden overland rigs. Includes all the components required to upgrade the front axle.

Delta Brake Calipers feature a high-modulus bridge. Modulus measures a material's resistance to elastic (recoverable) deformation under load. A stiff material has a high modulus, which means it only changes shape slightly under high elastic loads before returning to its normal shape.
Fits:

• JL Wrangler (2 Door)
• JL Wrangler Unlimited (4 Door)
• JK Wrangler (2 Door)
• JT Gladiator (pickup)
• JK Wrangler Unlimited (4 Door)
• Minimum Wheel Diameter: 17 inch
• Back Spacing: 4.75 inch or less
• Bolt Pattern: 8x6.5 inch

Includes:

• High-Modulus Brake Caliper Kit w/ Pads - Front (part number 4403401)
• 14 inch X 1.25 inch Vented and Slotted Rotors w/ 8x6.5 inch - Front (part number 4403455)
• All necessary hardware

Features and Benefits:

• Delta Brake System:
  • Significantly improved braking performance over factory brake system
  • 100 percent bolt-on upgrade w/ basic hand tools
  • Balanced front to rear brakes tuned specifically for lifted vehicles
  • Brake bias and piston sizes optimized for JL and JK Wrangler/Unlimited and JT Gladiator models
  • Designed to work w/ stock proportioning valve and ABS
  • 3-year warranty
• High-Modulus Brake Calipers:
  • Opposed 4-piston caliper design w/ 2 inch front pistons
  • Same flow rate as factory 2-piston calipers - 4 pistons move each side half the distance instead of 2 pistons only moving one side the full distance
  • EPDM synthetic boot material keeps water and other contaminants away from piston
  • Hard-chrome coating on piston reduces friction to improve performance
  • 4-piece High-Modulus bridge caliper design combines heat-treated 4140 cast steel bridges w/ 6061-T6 forged aluminum piston housings
  • Steel bridges resist bending/flex better than standard aluminum or cast iron
  • Improved stiffness = consistent brake feel/modulation during brake application and release
  • Low-profile bridge accepts 14 inch diameter rotors behind 17 inch wheels
  • 1,000-hour salt spray tested zinc- and E-dipped coating on bridges and mounts
  • 300,000 psi steel formed hardware
  • Calipers feature built-in auto bleeding check ball, valve, and spring for easy bleeding
  • Hard-coat anodized, scratch-resistant piston bores
• Brake Rotors:
  • Massive 14 inch x 1.25 inch vented rotors for superior stopping performance
  • Larger diameter rotors offer more mechanical advantage for more stopping power
  • Heat-treated, heavy cast-iron rotors offer better heat absorption
  • Mill-balanced, vented rotors for maximum heat dissipation
  • Included slotted rotors offer better gas dissipation than smooth rotors
  • GEOMET coating on non-friction surfaces resists corrosion
• Brake Pads:
  • Proprietary composite-resin, semi-metallic pads provide excellent full temperature stopping power for maximum initial speed scrub w/ increased pad life and reduced noise and dust
  • Drop-in pad design - no need to disassemble calipers to replace pads
• Stock Brake Rotor Reference:
  • JL Sahara/Rubicon front: 12.9 inch x 1.1 inch (330mm x 28mm) vented rotors
  • JL Sahara/Rubicon rear: 13.4 inch x 0.55 inch (342mm x 14mm) solid rotors
  • JL Sport front: 12.9 inch x 0.94 inch (330mm x 24mm) vented rotors
  • JL Sport rear: 12.9 inch x 0.47 inch (328mm x 12mm) solid rotors
  • JK front and rear: 11.9 inch x 1.1 inch (302mm x 28mm) vented rotors (U.S.-spec)

Notes:

• Requires a minimum wheel diameter of 17 inch.
• On JK models, we recommend upgrading the stock master cylinder and brake booster to the Mopar Master Cylinder and Brake Booster Kit (part number P5160050). Contact your Mopar dealer for availability.
• Install Time: 2 Hours
