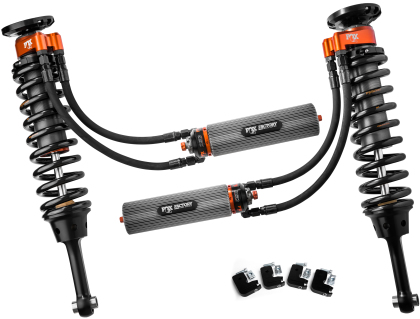

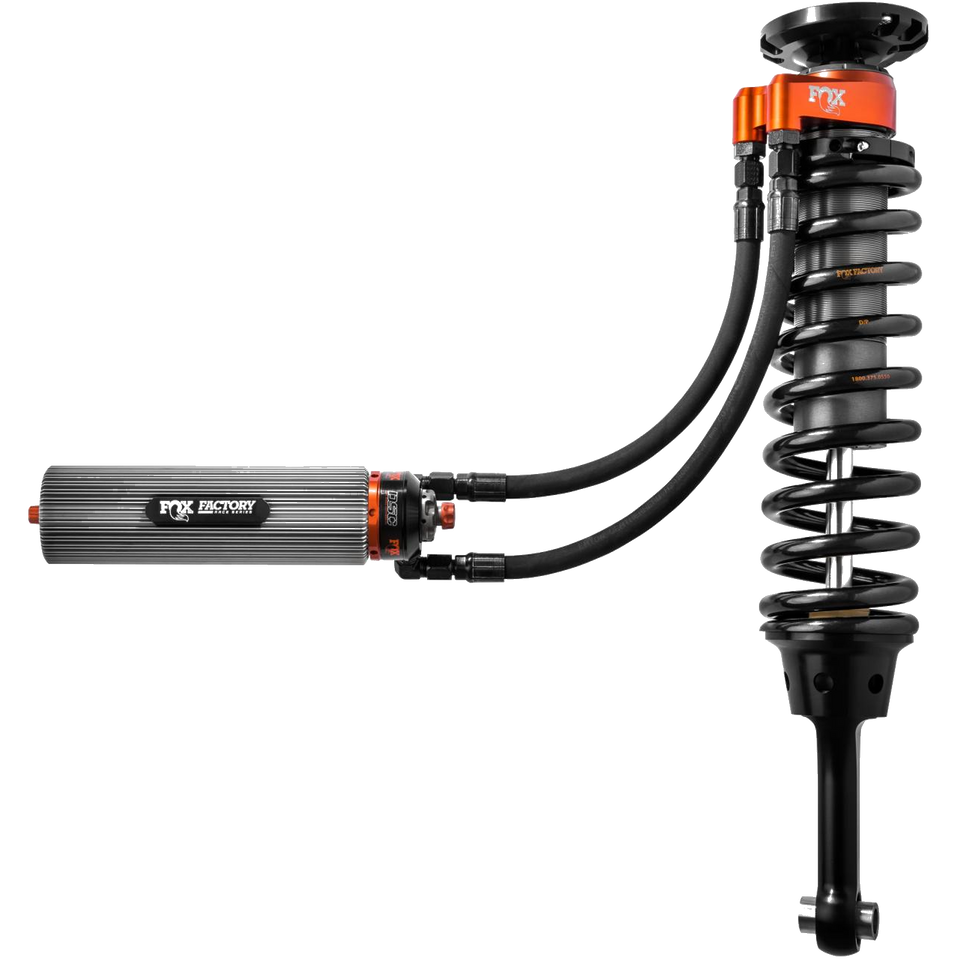

Fox Factory Race Series 3.0 Internal Bypass Front Coilover Set – 2017–2018 Ford F-150 Raptor (DSC Adjustable, Black)

Take your Gen 2 Raptor’s front suspension to race-level performance with the Fox Factory Race Series 3.0 Internal Bypass Coilover Kit. Engineered specifically for the 2017–2018 Ford F-150 Raptor, this high-performance coilover pair offers enhanced off-road control, better heat dissipation, and fully adjustable ride quality thanks to integrated DSC (Dual Speed Compression) adjusters and Fox’s new Recirculating Reservoir Bridge design.

Key Features & Benefits

• Vehicle-Specific Tuning: Pre-tuned for the Gen 2 Raptor to deliver maximum suspension performance and comfort in all terrain conditions.
• Internal Bypass Technology: Advanced valving with high-flow race piston ensures bottom-out resistance and plush ride control across varying speeds.
• Dual Speed Compression (DSC) Adjusters: Fine-tune low- and high-speed compression settings on-the-fly to match terrain and driving style.
• New Recirculating Reservoir Bridge: Enhanced cooling and fluid control with finned remote reservoir to reduce heat buildup under aggressive use.
• Hard Anodized Components: CNC-machined 6061-T6 billet aluminum and extruded aluminum bodies resist corrosion and increase durability.
• Preset Lift: Includes 3.75" racing springs calibrated to level your Gen 2 Raptor front-to-rear while supporting a front lift of 0–2”.
• 7/8” Chrome-Plated Shaft: 17-4 H900 stainless steel shaft offers superior strength and wear resistance.
• Spherical Bearings: PFTE-lined, heat-treated steel bearings ensure smooth articulation under high-load conditions.
• Bolt-On Installation: Direct fit replacement with no modifications required. Installs in factory mounting locations.

Product Specifications

• Part Number: 883-06-140
• Travel: 7.85"
• Extended Length: 28.45"
• Compressed Length: 20.6"
• Body Diameter: 3.0" (Hard Anodized Aluminum)
• Reservoir Type: Remote, Finned, Hard Anodized
• Mounting: Top – TM / Bottom – Eyelet
• Spring Rate: 3.75" Racing Spring (Preset to Level Front-to-Rear)

Vehicle Fitment

• 2017 Ford F-150 Raptor – Front
• 2018 Ford F-150 Raptor – Front

Why Choose the Fox Factory Race Series 3.0 Coilovers?

Whether you’re chasing high-speed desert trails or navigating rocky terrain, the Fox Factory Race 3.0 Coilover Kit gives your Raptor unmatched front-end damping, adjustability, and thermal efficiency. Built for extreme performance but refined for daily drivability, this is the ultimate front suspension upgrade for Gen 2 Raptor owners looking to push their truck to the next level.
